Features
Managing surveillance in hazardous environments requires equipment that guarantees both absolute safety and precise control. The 2MEPC-RS485 explosion-proof PTZ controller from 2M Technology is engineered specifically to meet these rigorous demands. Designed for industrial locations facing volatile elements, this controller provides operators with a reliable interface to manage complex camera networks seamlessly. Whether you are operating in oil refineries, chemical processing plants, or marine environments, this specialized explosion-proof PTZ controller ensures your security infrastructure remains fully operational without becoming a safety hazard.
Built for Extreme Safety: Certified Explosion-Proof PTZ Controller Construction
Safety is at the core of this device. Built with premium 304 or 316L marine-grade stainless steel, the rugged housing protects delicate internal components from corrosive environments and physical impacts. This explosion-proof PTZ controller features top-tier certifications, making it safe for use in Gas Zone 1 and Zone 2, as well as Dust Zone 21 and Zone 22 applications.
With an IP66 ingress protection rating, the unit completely blocks dust and withstands powerful water jets. To protect against electrical anomalies in unpredictable industrial grids, it also includes an optional TVS6000V surge protection system. This ensures that your heavy-duty explosion-proof PTZ controller continues working through harsh weather conditions and electrical spikes.
Comprehensive Camera Management and Control

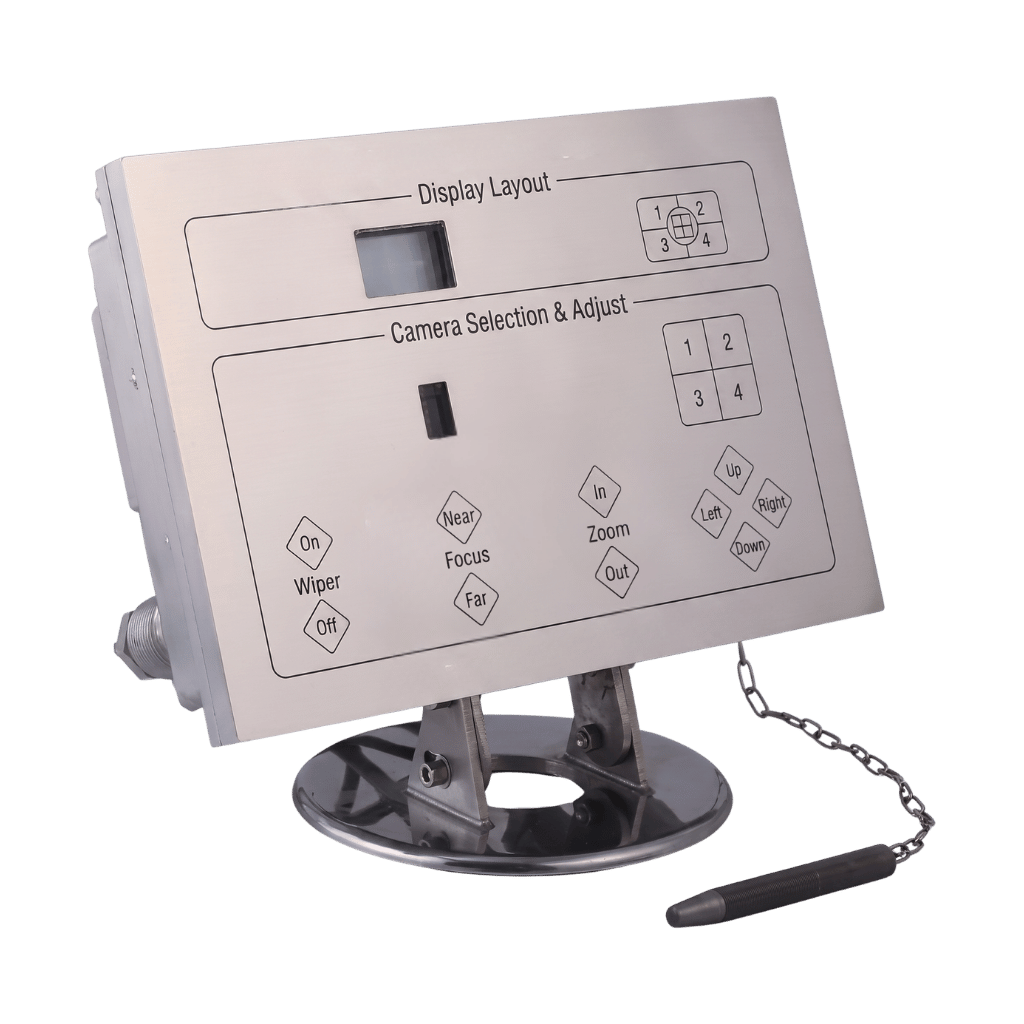

The user interface is designed for high-stress operational environments where precision is critical. The front panel features dedicated physical buttons for essential tasks, including camera selection, display layout adjustment, wiper control, focus, and zoom. Operators can easily switch between different view configurations or toggle the camera wipers to maintain a clear line of sight during rain or dust storms.
The system relies on RS485 communication, supporting the industry-standard Pelco-D and Pelco-P protocols at variable baud rates up to 19200 bps. Additionally, the unit incorporates an integrated 4-channel video input and 1-channel video output routing system. This functionality allows you to manage multiple video feeds directly through a single, centralized explosion-proof PTZ controller desk setup.
Key Specifications at a Glance
- Material Housing: 304 or 316L Stainless Steel
- Certifications: Exd IIB T6 Gb / DIP A20, TA T6
- Environmental Ratings: IP66 water and dust resistance
- Video Handling: 4-channel input, 1-channel output
- Protocols: RS485 (Pelco-D and Pelco-P support)
- Operating Voltage: AC 85V to 265V, DC 24V, or AC 24V
- Power Consumption: 50 W
- Operating Temperature: -25°C to +60°C or -45°C to +80°C (depending on configuration)
- Dimensions: 300 mm x 170 mm x 255 mm (11.8″ x 6.7″ x 10″)
- Total Unit Weight: 15 kg (33.1 lb)
