Features

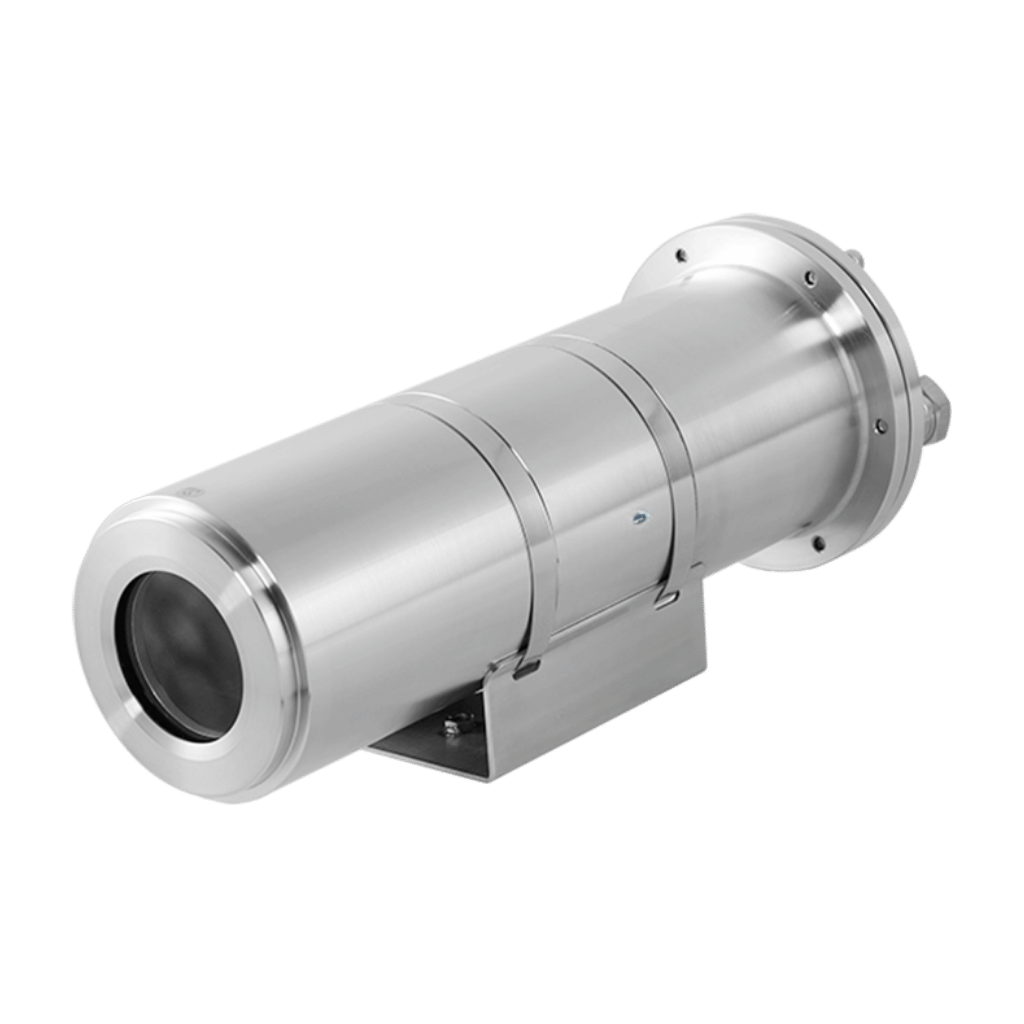

The 2MEXH-3213 is a stainless-steel explosion-proof bullet camera housing designed for hazardous gas and dust zones. With ultra-clear optics-grade glass, IP68 protection, and ATEX/IECEx certifications, it ensures safe and reliable surveillance in the toughest industrial environments.
Engineered for Hazardous Environments
The 2MEXH-3213 explosion-proof housing is built to protect bullet cameras in areas with explosive gases, combustible dust, or extreme weather. Certified for Gas Zones 1/2 and Dust Zones 20/21/22, it provides safe and dependable operation in refineries, chemical plants, oil and gas facilities, and other high-risk sites.
High-Performance Protection
Constructed from durable stainless steel 304/316L, this housing is explosion-proof, dustproof, waterproof, and corrosion-resistant. It also comes with IP68 ingress protection, ensuring long-lasting performance even when exposed to heavy rain, humidity, or corrosive conditions.
Ultra-Clear Imaging Support
Equipped with toughened optics-grade glass featuring more than 96% light transmittance, the housing ensures crisp, distortion-free video quality. This makes it an excellent choice for critical surveillance applications where image clarity cannot be compromised.
Certified Safety Standards
The 2MEXH-3213 is tested and certified to the highest international standards, including ATEX and IECEx, with safety ratings:
- Ex II 2G Ex db IIC T6 Gb
- Ex II 2D Ex tb IIIC 85°C Db
Practical Design & Installation
The 2MEXH-3213 housing measures Ø 106 × 320 mm (4.2 × 12.6 in.) and provides 100 × 260 mm (3.94 × 10.24 in.) of internal space to fit a wide range of bullet cameras. It features dual M25 cable thread holes for easy wiring and supports installation on wall mounts.
ATEX Explosion Proof Bullet Housing for Zone 1 Hazardous Locations
The 2MEXH-3213 is a purpose-built ATEX explosion proof bullet housing rated for continuous operation in Zone 1 and Zone 2 gas hazard areas and Zone 21 dust hazard environments. The stainless steel enclosure is machined to prevent ignition of surrounding flammable atmospheres — a requirement where standard CCTV cameras cannot be deployed.
Unlike generic outdoor camera housings, every 2MEXH-3213 ATEX explosion proof bullet housing ships with full ATEX and IECEx certification documentation for site compliance sign-off. The unit accepts standard bullet cameras through a G3/4 cable entry gland with IP68 rated sealing throughout.
Common Deployment Sites
- Oil refineries — perimeter and process area monitoring in hydrocarbon-rich environments
- Offshore platforms — salt-spray resistance combined with ATEX explosion proof bullet housing certification for marine hazardous zones
- Chemical storage facilities — loading bays and tank farm perimeter where solvent vapors are present
- Mining sites — methane-risk underground access points and surface processing areas
Contact 2M Technology for lead times, compatible camera models, and mounting bracket options for the 2MEXH-3213.
For multi-camera hazardous area projects, the 2MEXH-3213 ATEX explosion proof bullet housing is available in bulk supply with consistent certification batch numbers for compliance documentation.
