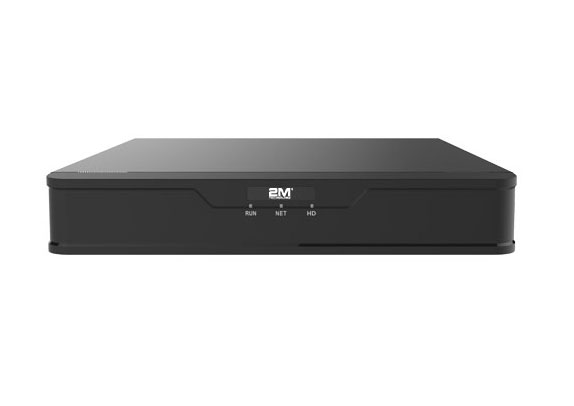

2MN-8008-P8-G 8 Channel Network Video Recorder
- Support Ultra 265/H.265/H.264 video formats
- 8-channel input
- 1 SATA HDD up to 6 TB
Product Documents
Downloads
2MN-8008-P8-G 8 Channel Network Video Recorder
Features:
- Support Ultra 265/H.265/H.264 video formats
- 8-channel input
- Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
- Support 1-ch HDMI, 1-ch VGA,HDMI at up 4K(3840×2160) resolution
- HDMI and VGA simultaneous output
- Up to 8MP resolution recording
- 1 SATA HDD up to 6 TB
- Support cloud upgrade
Dimensions | 9.4 × 10.2 × 1.9 in |
---|---|
Number of Channels | |
Country of Origin | China |
VIDEO/AUDIO INPUT | |
IP Video Input | 8-ch |
Two-way Audio Input | 1-ch, RCA |
VIDEO | |
HDMI/VGA Output |
HDMI:
3840×2160/30Hz,1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
Recording Resolution | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
Audio Output | 1-ch, RCA |
Synchronous Playback | 8-ch |
Corridor Mode Screen | 3/4/5/7/9 |
DECODING | |
Decoding Format | Ultra 265/H.265/H.264 |
Liveview/Playback | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
Capability | 2 x 4k@30, 3 x 5MP@30, 4 x 4MP@30, 5 x 3MP@30,8 x
1080p@30 |
NETWORK | |
Incoming Bandwidth | 80Mbps |
Outgoing Bandwidth | 64Mbps |
Remote Users | 128 |
Protocols | P2P, UPnP, NTP, DHCP, PPPoE |
HARD DISK | |
SATA | 1 SATA interface |
Capacity | up to 6TB for each disk |
EXTERNAL INTERFACE | |
Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface |
USB Interface | Rear panel: 1 x USB2.0,1 x USB3.0 |
POE | |
Interface | 8 RJ45 10M/100M self-adaptive Ethernet Interface |
Max Power | Max 30W for single port Max 75W in total |
Supported Standard | IEEE 802.3at, IEEE 802.3af |
GENERAL | |
Power Supply | 52V DC
Power Consumption: ≤8 W (without HDD) |
Working Environment | -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH
(non-condensing) |
Dimensions (W×D×H) | 260mm × 240mm × 47mm (10.2″×9.4″×1.9 “) |
Weight (without HDD) | 1kg (2.20 lb) |
