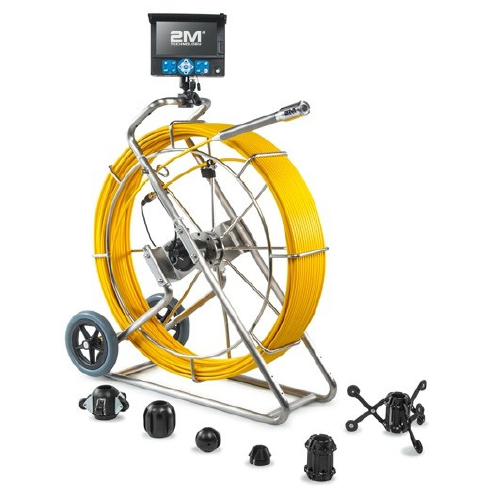

2MPIC-40 Push Rod Optical Equipment for Drain Pipe CCTV Inspection Camera

  • Spiral cable with 6x pin aviation plug
  • U type handle
  • Wireless keyboard
  • Tool Box, 7″ DVR & lithium ion battery inside

Note: This is a special order item. Allow 4-6 weeks for delivery.

Product Documents

2MPIC-40 Push Rod Optical Equipment for Drain Pipe CCTV Inspection Camera

  • Spiral cable with 6x pin aviation plug
  • U type handle
  • Wireless keyboard
  • Tool Box, 7″ DVR & lithium ion battery inside
  • 40/50/60 – 131’/164’/196′ Fiberglass cable 6.8mm @yellow fiber glass,
    meter counter & text input
  • 38mm / 1.49″ in self-leveling CCD camera head

        Note: This is a special order item. Allow 4-6 weeks for delivery.

OTHER SIZES AVAILABLE
2MPIC-40131131.23 Feet / 40m fiberglass cable
2MPIC-40164164.04 feet / 50m fiberglass cable
2MPIC-40197196.85 feet/ 60m fiberglass cable
2MPIC-40394393.70 feet /120 m fiberglass cable
OPTIONAL
512Hz sonde into camera head
Wireless Keyboard



CAMERA
Camera SizeØ 38 x 81 (mm) / Ø 1.49" x 3.18" (in.)
Camera Total Length318mm / 12.5" in
Sensor1/3" Sony CCD, 700 TVL
Pixel976 (H) x 582 (V)
View Angle120°
Self LevelingBuilt-in
Focus Distance12cm / 4.7" in
Depth-of-Field120cm / 40.2" in
Front LensSapphire glass
Waterproof20m/65.6' ft. Under Water (Camera fixed on Cable)
Shell Material#304 stainless steel
LightingBuilt-in 4x LED (White)
Operating Temperature-10°C ~ 50°C (14°F ~ 122°F)
Storage Temperature-20°C ~ 60°C (4°F ~ 140°F)
MONITOR
Screen7-inch 16:9 Super bright HD color LCD screen
Resolution800 x 480 RGB
Mirror and FlipSupports image mirror, and flip
Video Resolution720 x 576 25fps Max
Video EncodingH.264
Photograph720 x 480 / 720 x 576
Audio RecordingLocal sound record
OutputTV and audio output
External MemorySD memory card up to 32GB
Data OutputUSB 2.0 to PC
LED DriverBuilt-in dimmer
On ScreenDate, time, Distance (m/ft) display
Battery Capacity7.4 V 4400mAh lithium ion battery
Power SupplyDC 12V input
Life/Charge Time5/8 hours
LanguageEnglish, German, French, Spanish, Italian, Chinese, Japanese, Russian, Portuguese
CABLE WHEEL
Push Rod60-120M fiberglass push rod cable with on-screen distance counter
Push Cable Diameter9mm
OPTIONAL
Camera head with built-in 512Hz sonde
    Camera SkidsCaster Skid: POM Ø 134 x 83.9 30mm Wheel
POM Skid: POM Ø 78 x 83.9
Ball Support: POM S Ø 60 x 53.5
Lock Sleeve: POM Ø 54.6 x 38
Cable Length Options60m, 80m,100m,120m
OTHER SIZES AVAILABLE
2MPIC-40131131.23 Feet / 40m fiberglass cable
2MPIC-40164164.04 feet / 50m fiberglass cable
2MPIC-40197196.85 feet/ 60m fiberglass cable
2MPIC-40394393.70 feet /120 m fiberglass cable
OPTIONAL
512Hz sonde into camera head
Wireless Keyboard
