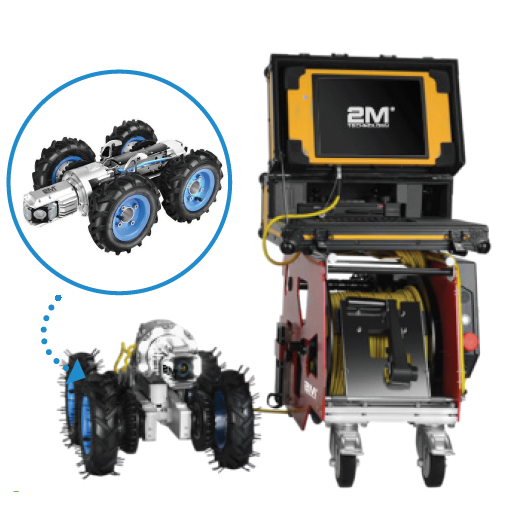

2MRCPTZ-20100 Pipe Inspection Crawler Robot and Underwater CCTV Camera
REQUEST QUOTE (for best price)
- 90mm /3.5″ in HD camera head
- Pan and tilt zoom head, with 10x optical zoom
- 4-wheel crawler body for 200mm to 1000mm
- Motorized elevator
- 12.1″ inch display and controller (256GB hard disk)
Note: This is a special order item. Allow 4-6 weeks for delivery.
Product Documents
Downloads
2MRCPTZ-20100 Pipe Inspection Crawler Robot and Underwater CCTV Camera
- 90mm /3.5″ in HD camera head
- Pan and tilt zoom head, with 10x optical zoom
- 4-wheel crawler body for 200mm to 1000mm
- Motorized elevator
- 1″ inch display controller (256GB hard disk)
- Remote control box
- 120m /4.7″ cable reel with counter
- Includes keyboard and mouse
- 110/220V power supply
- 48V battery optional
- Cable guide for manhole and underground
- Hook to lower down the crawler
- Tools and screws
- Can generate reports
- Motorized cable reel sold separately
Note: This is a special order item. Allow 4-6 weeks for delivery.
OTHER SIZES AVAILABLE | |
2MRCPTZ-20100-394 | 393.70ft/ 120m manual reel |
2MRCPTZ-20100-492 | 492.13ft/150m manual reel |
2MRCPTZ-20100-656 | 656.17ft/ 200m manual reel |
OPTIONAL | |
Motorized reel | |
| Country of Origin | China |
|---|
| Product Classification | Sewer pan and tilt camera |
| Inspection Range | Approx. DN 200 and up |
| Dimension | Ø 190mm/7.4" in. |
| Weight | Approx. 17 kg/37 lbs |
| Tractor Operation | Yes |
| Camera Reorientation | Yes |
| Focus | Auto focus |
| Lighting | 4 LED lights |
| Ingress Protection | IP68 |
| Ambient Temperature | -20°C to 55°C / -4°F to 131°F |
| Test Pressure | 10-15 PSI |
| Pressure Monitoring | Integrated pressure sensor continuously monitors inner pressure |
| Panning Range | 270° endless pan |
| Viewing Range | ±120° |
| Angle of Rotation | Continuous |
| Sensor (Inch) | 1/4" |
| Sonde | No |
| TV Standard | HD |
| Explosion Protection | Optional |
| Image Resolution | 700TVL |
| OTHER SIZES AVAILABLE | |
| 2MRCPTZ-20100-394 | 393.70ft/ 120m manual reel |
| 2MRCPTZ-20100-492 | 492.13ft/150m manual reel |
| 2MRCPTZ-20100-656 | 656.17ft/ 200m manual reel |
| OPTIONAL | |
| Motorized reel | |
