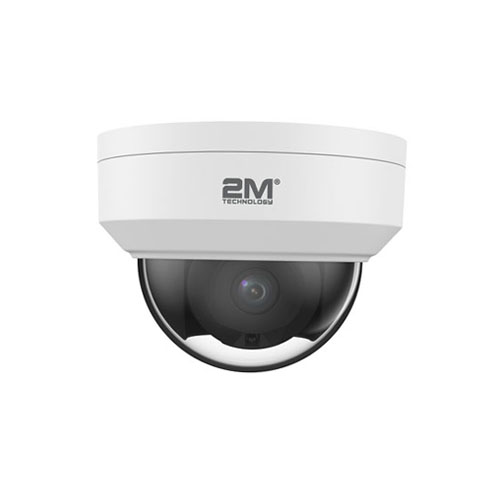

2M Technology 2MVIP-4MIR30-E 4MP Vandal-resistant Network IR Fixed Dome Camera

  • 2.8 Fixed lens
  • Ultra 265/H.264/MJPEG
  • Triple stream
  • DC12V & PoE

Product Documents

The 2M Technology 2MVIP-4MIR30-E 4MP network IR fixed dome camera can be used for indoor or outdoor purposes. IP67 (weatherproof protection), IK10 (impact protection) and rating vandal proof makes it capable to withstand harsh outdoor conditions. Fully designed with the newest technology Smart IR, up to 30m IR distance.

This 4MP 2MVIP-4MIR30-E vandal proof dome camera comes with a 3.6mm fixed lens. Loaded with Smart features such as Privacy Mask and motion detection. It also provides up to 4 privacy mask areas if you don’t want certain information to record on your video footage. 2M Technology 2MVIP-4MIR30-E comes with 3D DNR (Digital Noise Reduction) which improves the quality of the images in low light conditions. You will not only get higher quality images but DNR also reduces the file size which requires less storage.

Other features that come with this 4MP vandal proof dome are: supports 0.05 Lux@F1.2 (color); 0.01 Lux@F1.2 (black and white), wide dynamic range (WDR) which allows you to record in both bright and dark lighting conditions.

For configuration the camera can be access via web browser using Default username: admin password: 123456

Features:

  • 1/3″ CMOS
  • ICR
  • 2592 x 1520: 20fps
  • Ultra 265/H.264/MJPEG
  • Triple stream
  • DC12V & PoE
  • Fixed lens (2.8mm)
  • IR range: up to 98ft
Weight0.77 lbs
Resolution

4 Megapixel (2592 x 1520)

Signal Type

Night Vision Distance

30 Meters (100 feet)

Series

Essential Series

Night Vision Type

Infra Red (IR) LED

Lens

Fixed 2.8mm Lens

Camera
Sensor1/3″, progressive scan, 4.0 megapixel, CMOS
Lens2.8mm@F2.04.0mm@F2.0
DORI DistanceLens (mm)Detect (m)Observe (m)Recognize (m)Identify (m)
2.84216.88.44.2
4.06024126
Angle of View (H)104.4°78.9°
Angle of View (V)54.4°39.6°
Angle of View (O)135.7°97.0°
Adjustment anglePan 0° ~ 360°Tilt: 0° ~ 75°
ShutterAuto/Manual, 1 ~ 1/100000s
Minimum IlluminationColour: 0.03Lux (F2.0, AGC ON)
0Lux with IR
Day/NightIR-cut filter with auto switch (ICR)
Digital noise reduction2D/3D DNR
S/N>52dB
IR RangeUp to 30m (98ft) IR range
DefogDigital Defog
WDRDWDR
Video
Video CompressionUltra 265, H.265, H.264, MJPEG
H.264 code profileBaseline profile, Main Profile
Frame RateMain Stream: 4MP (2592*1520), Max 20fps;
Sub Stream: 720P (1280*720), Max 20fps;
Third Stream: D1 (720*576), Max 20fps
HLCSupported
BLCSupported
OSDUp to 4 OSDs
Privacy MaskUp to 8 areas
ROIUp to 2 areas
Motion DetectionUp to 4 areas
Smart
Behavior DetectionIntrusion, Motion detection,Tampering alarm
IntrusionEnter and loiter in a pre-defined virtual region
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS
Compatible IntegrationONVIF (Profile S, Profile T), API
Interface
Network1 RJ45 100M Base-TX Ethernet
General
PowerDC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 4W
Dimensions (Ø x H)Φ109 x 81mm (Ø4.3” x 3.2”)
Weight0.45kg (0.99lb)
Working Environment-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Ingress ProtectionIP67
Vandal ResistantIK10
