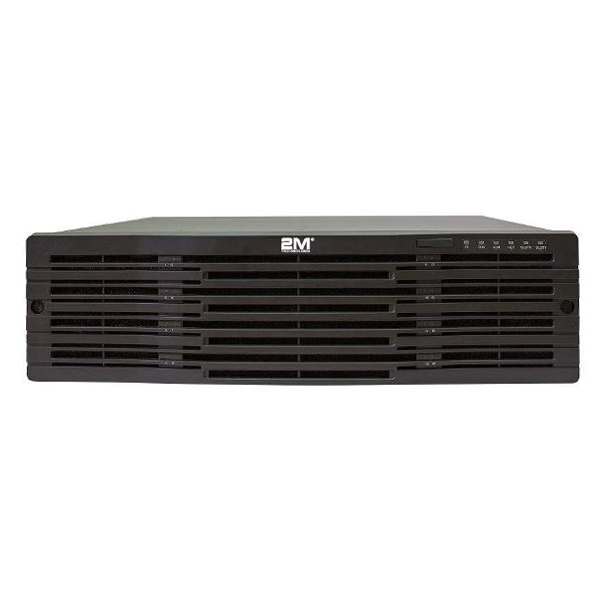

2M Technology 2MN-85128-C 128 Channel 16 HDDs RAID NVR

  • • LAN1/LAN2 Interface, 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces provided.
  • LINE IN, RCA connector for audio input.
  • AUDIO OUT, RCA connector for audio output.
  • HDMI1/HDMI2, HDMI video output connector.
  • VGA1/VGA2, DB9 connector for VGA output. Display local video output and menu.
  • Holds up to 10HDD  up to 10TB/ea

Product Documents

2M Technology 128 Channel Network Video Recorder Features:

  • • LAN1/LAN2 Interface, 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces provided.
  • • LINE IN, RCA connector for audio input.
  • • AUDIO OUT, RCA connector for audio output.
  • • HDMI1/HDMI2, HDMI video output connector.
  • VGA1/VGA2, DB9 connector for VGA output. Display local video output and menu.
  • USB 3.0 Interface
  • RS-232 Interface
  • eSATA Interface
  • Holds Hard Drives up to 10TB
  • Controller Port, Alarm In/Alarm Out
  • 100 to 240 VAC power supply
  • Power Switch
  • GND
Weight 22.05 lbs
Number of Channels

Signal Type

PoE Channels

Internal Hard Drives SATA Ports

10 SATA Hard Drives

Series

Corporate Series

VIDEO/AUDIO INPUT
IP Video Input 128CH
Incoming Bandwidth 320 Mbps
Outgoing Bandwidth 256 Mbps, or 200 Mbps (when RAID is enabled)
VIDEO/AUDIO OUTPUT




VGA1 / HDMI1 Output Resolution

HDMI1: 4K (3840 x 2160)/60Hz, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1600 x 1200/60Hz,

1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz

HDMI2: 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz



VGA2 / HDMI2 Output Resolution

VGA1: 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz

VGA2: 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x

720/60Hz, 1024 x 768/60Hz

Audio Output 2CH, RCA (2.0Vp-p, 1 KΩ)
DECODING
Decoding Format H.265/H.264+/H.264/MPEG4


Recording Resolution

12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/ VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Synchronous Playback 16CH
Capability 4CH @ 4K, or 16CH @ 1080p
HARD DISK
SATA 16 SATA interfaces
eSATA 1 eSATA interface
Capacity 500GB/1TB/2TB/3TB/4TB/5TB/6TB
DISK ARRAY
Array Type RAID0, RAID1, RAID5, RAID6, RAID10
VCA
VCA Events IPC uploading supported
Two-way Audio 1CH, RCA (2.0 Vp-p, 1 k Ω)
EXTERNAL INTERFACE
Network Interface 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Serial Interface RS-232; RS-485; Keyboard
Usb Interface Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm In/Out 16/8
GENERAL
Power supply 100 to 240 VAC, 50 to 60 Hz
Max. Power 300 W
Consumption (Without Hard Disk) ≤45 W
Working Temperature -10 to +55ºC (14 to 131ºF)
Working Humidity 10 to 90 %
Chassis 19-inch rack-mounted 3U chassis
Dimensions (W×D×H) 445 × 496 ×146 mm ( 17.5″× 19.5″ × 5.7″)
Weight (Without Hard Disk) ≤ 12.5 Kg (27.6lb)
