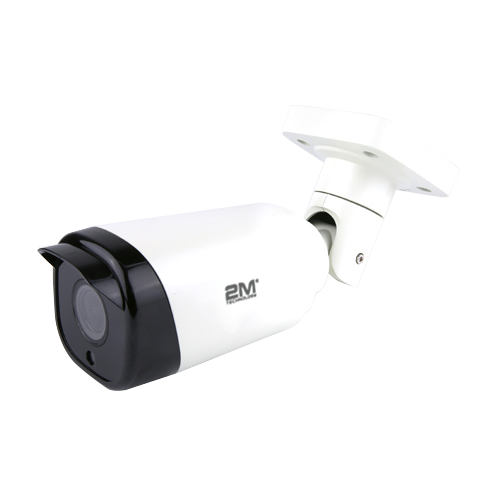

2MBT-2MIR20SL 2MP TVI Bullet Camera Fixed Lens with Starlight

  • Supports AHD/CVI/TVI/CVBS 4-IN-1 cameras
  • 2MP Resolution
  • 2.8mm fixed lens
  • IR Illumination up to 20m
  • Metal casing with an IP66 rating
REQUEST DEMO

Product Documents

  • 4-in-1 bullet camera
  • Supports AHD/CVI/TVI/CVBS 4-IN-1 cameras
  • 2MP Resolution
  • 2.8mm fixed lens
  • IR Illumination up to 20m
  • Metal casing with an IP66 rating
  • Default TVI output

Additional Information

Lens

Fixed 2.8mm Lens

Ingress Protection

IP67

Resolution

2 Megapixel (1920 x 1080)

Signal Type

CAMERA
Video Output ModeAHD/CVI/TVI/CVBS 4-IN-1
Image Sensor1/2.8″ SONY Starvis Back-illuminated CMOS Sensor
Image Resolution2MP 1080P/ 960H
Effective Pixels1920*1080
TV SystemPAL/NTSC
Electronic Shutter1/25s~1/50,000s , 1/30s~1/60,000s
S/N Ratio≥50dB
Scanning SystemProgressive Scan
LENS
Focus Length2.8mm
Focus ControlFixed
Lens TypeFixed
NIGHT VISION
Infrared LED14µ x 20PCS
Infrared Distance20M
IR Power On / OffSmart IR control
CAMERA FEATURES
StarlightYES
Day/NightYES
OSD Menu LanguageYES
White BalanceAUTO / MANUAL
Gain ControlAUTO
Noise Reduction3DNR
Picture AdjustmentYES
WDRYES
OSD SupportYES
UTCYES
Dip Switch/
GENERAL
HousingMetal, IP66
BracketYES
Dual VoltageNO
IR Cut FilterYES
HeaterNO
Audio/
Operation Temperature-10°C ~ +50°C RH95% Max
Storage Temperature-20°C ~ +60°C RH95% Max
Power SourceDC12V±10%, 600mA
Dimension157(W) x 70(H) x 66(D)mm
Weight650g
