Trusted UniFi PTZ Commercial Deployment Guide | Pan-Tilt-Zoom Camera for Texas
Updated May 202622-2x optical zoom with AI auto-tracking — engineered for Texas parking lots, campus perimeters, and large outdoor areas requiring single-camera wide-area coverage
Get a Free Deployment Assessment
UniFi PTZ commercial deployment covers large outdoor areas — parking lots, campus perimeters, and loading zones — that would require 6-8 fixed cameras to replicate. The G5 PTZ optical zoom tracks individuals across zones and zooms in on license plates and facial detail from distances where fixed cameras capture only silhouettes. 2M Technology deploys PTZ cameras as the investigation layer above a fixed-camera base in Texas commercial security systems.
| Resolution | 4MP (2560×1440) |
| Optical Zoom | 22x optical, continuous pan 360-degree |
| Tilt Range | –15 to +90 degrees (auto-tilt on alarm) |
| IR Night Vision | 20m (65ft) dual IR/white LED |
| PoE Requirement | 802.3af, 14W |
| IP Rating | IP66 weatherproof |
UniFi PTZ commercial deployment planning differs fundamentally from fixed-camera design — PTZ cameras require preset programming, patrol route configuration, and auto-tracking zone setup before deployment is operationally useful.
What is UniFi PTZ?

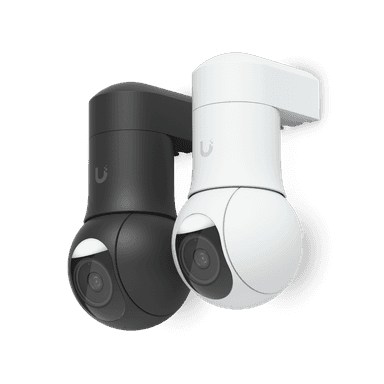

The UniFi G5 PTZ (UVC-G5-PTZ) is a 4MP outdoor pan-tilt-zoom camera with 2x optical zoom, 360-degree continuous pan, and AI-powered auto-tracking. UniFi PTZ commercial deployment covers large outdoor areas from a single mounting point, with optical zoom delivering license plate and facial detail at distances where fixed cameras capture only general movement. The G5 PTZ requires PoE+ (802.3at, 30W) and operates in IP66-rated outdoor environments.
PTZ cameras operate in two modes in commercial deployments: patrolling a programmed sequence of preset positions on a timer, and triggered mode where AI detection of a person or vehicle in a zone causes the camera to slew to that area and track the subject. 2M Technology programs both modes on every PTZ deployment, with triggered tracking activated during after-hours periods and patrol routes running during business hours.
The 100m IR illuminator allows the G5 PTZ to capture usable footage in complete darkness at distances that passive IR cameras cannot achieve. Texas parking lots, which regularly exceed 500 feet in length, are a primary use case — the PTZ covers the full lot from a single pole mount with the ability to zoom in on any vehicle in any row.
Matching UniFi PTZ commercial deployment site selection to the correct coverage scenario determines whether a PTZ delivers its full investigative value or functions as an expensive fixed camera.
Commercial Use Cases in Texas

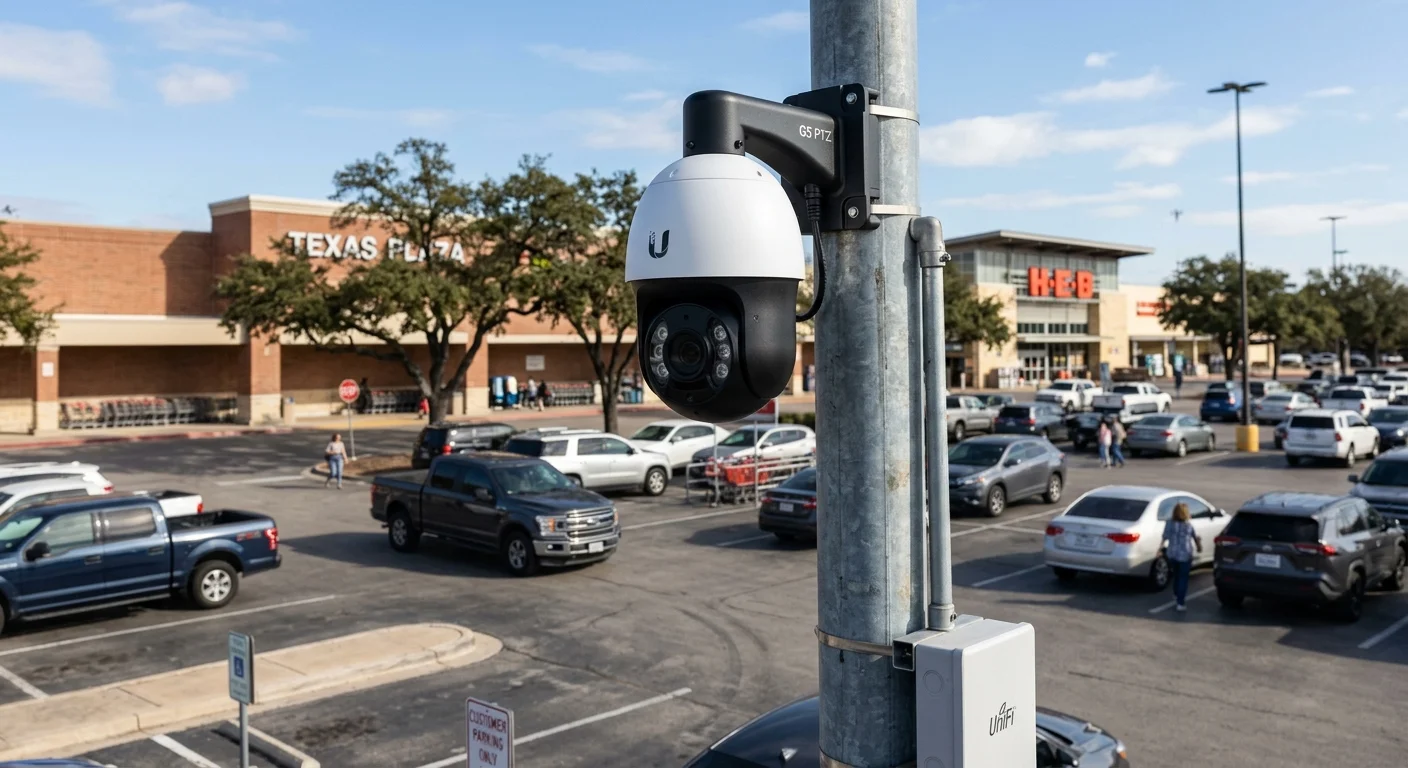

Large Parking Lots and Structures
Texas commercial sites with surface parking lots exceeding 200 spaces deploy the G5 PTZ on perimeter poles or building corners. One PTZ covers a standard 300-space surface lot with the ability to zoom in on any vehicle or pedestrian at any location. 2M Technology programs 8-12 preset positions covering entry lanes, exit lanes, handicap zones, and perimeter corners, cycling on a 30-second patrol during business hours.
Campus Perimeter and Building Perimeter
University campuses, corporate campuses, and large Texas industrial facilities use PTZ cameras at perimeter corners as the long-range early-warning layer. The 100m IR range and 22x zoom detect and identify individuals at the fence line before they reach the building — providing 30-60 seconds of advance alert time versus fixed cameras that only capture subjects at close range.
Loading Docks and Distribution Entry Points
Texas distribution facilities deploy PTZ cameras above loading dock rows to monitor trailer coupling, cargo transfer, and driver behavior across a long loading area. A single G5 PTZ can patrol all 12-20 doors in a standard dock row, zooming in on specific doors when AI detection triggers an alert during off-hours.
UniFi PTZ commercial deployment technical specifications from Ubiquiti’s published G5 PTZ datasheet, as deployed and verified by 2M Technology across Texas commercial sites.
Technical Specifications
| Specification | Value | Commercial Note |
|---|---|---|
| Sensor | 1/2.8-inch CMOS, 4MP | 4MP at 22x zoom delivers significant reach advantage over fixed cameras |
| Resolution | 2560×1440 (4MP / 2.5K) | Usable detail for identification at 50m+ with full zoom |
| Optical Zoom | 2x optical zoom (10x digital total) | Digital zoom extends further with resolution tradeoff |
| Pan Range | 350-degree pan range | No physical pan limit — full perimeter coverage from single mount |
| Tilt Range | –15 to +90 degrees | Negative tilt allows camera to look directly downward from pole mount |
| Preset Positions | Up to 256 programmable presets | 2M Technology typically programs 8-12 presets per deployment |
| IR Illumination | 20m (65ft) dual IR and white LED illumination | Switchable to full-color low-light mode in adequate ambient light |
| PoE Requirement | 802.3af, 14W | Requires PoE+ switch port — standard 802.3af (15.4W) insufficient |
| IP Rating | IP66 (weatherproof, rain-resistant) | Suitable for Texas outdoor installation without additional enclosure |
| Auto-Tracking | AI person and vehicle tracking across detection zones | Tracks subjects continuously until they exit the monitored area |
Source: Ubiquiti UniFi Tech Specs — Cameras and NVRs
UniFi PTZ commercial deployment installation requires PoE+ infrastructure, pole or parapet mounting, and patrol programming — 2M Technology handles all three as part of every Texas PTZ deployment.
Deployment Requirements
| Requirement | Specification |
|---|---|
| PoE Requirement | 802.3af, 14W per port — standard 802.3af ports will not power the PTZ at full function |
| Cabling | Cat5e or Cat6, max 100m copper run; shielded recommended for pole-mounted outdoor runs |
| Mounting Options | Pole mount (2-inch NPT, separate pole required), wall mount, parapet/corner mount |
| Mounting Height | 5-8m (16-26ft) recommended for parking lot coverage — lower for dock and entry monitoring |
| NVR Capacity | 1 camera slot on UNVR Pro or Enterprise NVR; UDM-Pro supports up to 7 total cameras |
| Storage Estimate | 30-60GB/day at 4MP 30fps H.265+ depending on scene activity and zoom level |
| Patrol Programming | 2M Technology programs all presets, patrol routes, and auto-tracking zones during commissioning |
UniFi PTZ commercial deployment works best when integrated with access control alerts and fixed camera systems — the PTZ acts as the investigative zoom layer on top of the base fixed-camera coverage.
UniFi Ecosystem Integration
The G5 PTZ integrates with UniFi Protect for recording, patrol programming, and AI-triggered tracking. When a UniFi AI 360 or fixed camera detects an AI person event, Protect can automatically move the PTZ to the nearest preset covering that zone — creating an automated investigative response without operator involvement.
For Texas campus deployments with UniFi Access controlling building entry, a door forced-open alarm triggers the PTZ nearest to that door to slew to that position and begin recording at elevated bitrate. 2M Technology configures these cross-system triggers during the commissioning phase of every PTZ deployment.
Comparing UniFi PTZ commercial deployment against competing PTZ models helps Texas security managers understand the total cost of ownership differences between UniFi and traditional surveillance vendors.
UniFi G5 PTZ vs Commercial PTZ Alternatives
| Feature | UniFi (2M Technology) | Hikvision DS-2DE4425IW | Axis P5655-E |
|---|---|---|---|
| Resolution | 4MP (2.5K) | 4MP | 2MP (1080p) |
| Optical Zoom | 22x | 25x | 32x |
| IR Range | 100m | 100m | 100m |
| Auto-Tracking | AI included, no license | AI — separate analytics license | Yes — requires Axis license |
| PoE | 802.3af (14W) | 802.3at (25.5W) | 802.3at (25.5W) |
| NVR Software | UniFi Protect — included | iVMS-4200 — separate install | AXIS Camera Station — licensed |
| Management | Unified UniFi console | Per-site NVR software | Per-site AXIS management |
Avoiding common UniFi PTZ commercial deployment mistakes requires understanding how PTZ cameras differ from fixed cameras in both installation and operational requirements.
Common UniFi PTZ Commercial Deployment Mistakes
Using Standard 802.3af PoE Ports
The G5 PTZ requires PoE+ (802.3at, 30W) to operate the pan/tilt motor, zoom mechanism, and IR illuminator simultaneously. Connecting to a standard 802.3af (15.4W) port causes the camera to function in a degraded state — typically with reduced IR or limited motor function. 2M Technology verifies PoE budget on every switch port before PTZ installation.
Not Programming Patrol Routes
A PTZ deployed without patrol preset programming functions as a static camera pointing at a single fixed angle — wasting the camera’s primary capability. 2M Technology programs a minimum of 8 patrol presets covering all critical coverage zones, with a 30-second dwell at each preset during business hours. After-hours mode switches to AI-triggered tracking exclusively.
Mounting Too Low for Parking Coverage
PTZ cameras mounted below 5m on parking lots face subjects from ground level, reducing detection range and creating blind spots in the nearest rows. For Texas surface parking lots, 2M Technology mounts PTZ cameras at 6-8m on steel poles positioned at lot perimeter corners, providing elevated viewing angles across all rows with no near-field blind spots.
UniFi PTZ commercial deployment questions from Texas security directors and facilities managers — answered with specific values from UniFi Protect and 2M Technology deployment experience.
Frequently Asked Questions
How far can the UniFi G5 PTZ zoom in to read a license plate?
At 2x optical zoom, the G5 PTZ can capture license plate detail useful for review at close range with digital zoom (2x optical + 10x digital). For long-range license plate capture at 30m+, 2M Technology recommends the UniFi AI PTZ Precision model
Does the UniFi G5 PTZ auto-track subjects automatically?
Yes. AI auto-tracking is a built-in feature of the G5 PTZ in UniFi Protect. When person or vehicle detection is triggered within a configured zone, the camera automatically tracks the subject across the scene until they exit the frame. Auto-tracking can be scheduled — 2M Technology typically activates it during after-hours periods and disables it during busy business hours when constant movement would cause excessive camera movement.
Can one PTZ replace all fixed cameras in a parking lot?
A PTZ can cover a parking lot’s investigative needs but should not replace fixed cameras entirely. Fixed cameras provide continuous recorded coverage at every position simultaneously — a PTZ only records what it is currently pointing at. 2M Technology designs parking lots with a fixed-camera base (G5 Bullet at entry/exit lanes and pedestrian paths) plus one or two PTZ cameras for wide-area coverage and investigation.
What switch is required for UniFi PTZ deployment?
Any PoE+ (802.3at) capable switch with at least 30W per PTZ port. The UniFi Enterprise Switch 48 PoE provides 600W total PoE budget suitable for mixed PTZ and fixed camera deployments. For outdoor pole-mounted PTZ units more than 100m from the building, a media converter or fiber run with a local PoE injector at the pole is required.
How many presets can the UniFi G5 PTZ store?
The G5 PTZ supports up to 256 programmable preset positions in UniFi Protect. Most Texas commercial deployments use 8-16 presets covering primary surveillance zones. Presets can be grouped into patrol routes with configurable dwell times at each position. 2M Technology documents all preset positions and patrol routes in a site-specific camera configuration sheet provided at project completion.
