Proven UniFi Turret Commercial Deployment Guide | 4K AI Camera for Texas Businesses
Updated May 2026
4K (8MP) turret camera with AI person and vehicle detection — the most versatile UniFi camera for Texas entryways, corridors, and outdoor perimeters
UniFi Turret commercial deployment provides 4K AI detection in a compact wall-mount profile that fits standard single-gang junction boxes and exterior soffit surfaces. The AI Turret is 2M Technology’s recommended camera for entryways, building corners, exterior overhangs, and interior corridors where 4K resolution and on-camera AI detection are needed without the ceiling-only constraint of dome cameras.
Quick Reference — UniFi AI Turret (UVC-AI-Turret)
| Resolution | 8MP (4K), 3840×2160 |
| Lens Options | 2.8mm (110 deg diagonal) or 4mm (90 deg diagonal) |
| IR Night Vision | 30m (98ft) |
| PoE Requirement | 802.3af, 13W typical |
| Ratings | IP67, IK08 |
| AI Detection | Person, vehicle, animal, package — no license fee |
Quick Navigation
UniFi Turret commercial deployment selection over dome and bullet cameras comes down to mounting flexibility — the turret form factor accepts wall, ceiling, and soffit mounts without separate accessories.
What is UniFi AI Turret?

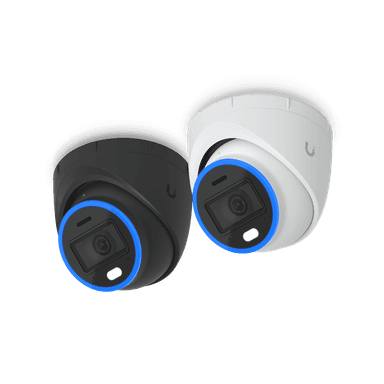

The UniFi AI Turret (UVC-AI-Turret) is a 4K (8MP) compact turret-form camera with built-in AI detection for persons, vehicles, animals, and package events. UniFi Turret commercial deployment uses the camera’s adjustable ball joint to direct coverage from wall, ceiling, soffit, or pole mounts without separate adapters. The IP67 and IK08 ratings make it suitable for both indoor and exposed outdoor Texas commercial environments.
The turret form factor’s key commercial advantage is flexibility. Unlike dome cameras that require ceiling center mounting for optimal coverage, the AI Turret mounts on any flat surface and the ball joint points the lens in any direction. A wall-mounted AI Turret at door frame height captures approaching faces at eye level — optimal for access point identification. The same camera mounted at corner soffit captures a wide exterior view of a building approach.
The 4K sensor delivers 8MP resolution — double the pixel count of the 5MP G5 Dome — providing significantly more digital zoom capability in post-incident review. When investigating specific events in recorded footage, the extra resolution allows investigators to digitally zoom into areas of the frame that a 5MP camera would render unusable.
Understanding the most effective UniFi Turret commercial deployment positions for each Texas commercial environment requires site analysis — 2M Technology identifies optimal mounting locations during the pre-installation survey.
Commercial Use Cases in Texas
Building Entry and Exit Points
The AI Turret is 2M Technology’s standard recommendation for Texas commercial building entry monitoring. Wall-mounted at 2.2-2.5m at a 45-degree downward angle, the 2.8mm lens captures faces of individuals approaching the door from 3-5 meters — providing both wide-angle scene context and sufficient facial detail for identification.
Exterior Soffit and Corner Mounting
Texas commercial properties with covered walkways, loading dock overhangs, and exterior corner mounting points deploy the AI Turret on soffit surfaces. The ball joint directs coverage along parking approaches, dock doors, and pedestrian paths without the dedicated exterior housing required by dome-form cameras in equivalent positions.
Interior Corridors and Restricted Areas
For Texas office buildings with strict access zones (executive floors, server rooms, finance areas), the AI Turret provides 4K resolution footage of corridor and door approach activity. The package detection feature automatically flags delivery activity in shipping and receiving corridors, creating an automatic log of delivery events without requiring operators to manually review footage.
UniFi Turret commercial deployment technical specifications verified from Ubiquiti’s published AI Turret datasheet, as confirmed in 2M Technology Texas commercial deployments.
Technical Specifications
| Specification | Value | Commercial Note |
|---|---|---|
| Sensor | 1/1.7-inch CMOS, 8MP (4K) | Same high-quality sensor as the UniFi AI 360 |
| Resolution | 3840×2160 (8MP / 4K) | 4K provides significant digital zoom capability in review |
| Lens Options | 2.8mm (110 deg diagonal FoV) or 4mm (90 deg diagonal FoV) | 2.8mm for wide entryway view; 4mm for narrower approach or distance |
| Frame Rate | 30fps at maximum resolution | H.265+ compression reduces storage vs H.264 by approximately 40% |
| IR Illumination | 30m (98ft) with Smart IR intensity adjustment | Longer IR range than G5 Dome — effective for outdoor approach lighting |
| PoE Requirement | 802.3af, 13W typical draw | Efficient PoE consumption — standard switch port, no PoE+ required |
| IP Rating | IP67 (immersion-rated), IK08 (5J impact) | IP67 rated for outdoor use; IK08 provides moderate vandal resistance |
| AI Detection | Person, vehicle, animal, package — on-camera processing | No per-channel license — included with UniFi Protect |
| Mount Type | Adjustable ball joint — wall, ceiling, soffit, or pole | Single hardware unit covers all common commercial mount positions |
| NVR Compatibility | UNVR, UNVR Pro, Enterprise NVR, UDM-Pro via UniFi Protect | Adopts automatically on same network segment as Protect NVR |
Source: Ubiquiti UniFi Tech Specs — Cameras and NVRs
UniFi Turret commercial deployment installation is straightforward but requires lens selection and mounting angle decisions before installation — both are permanent once cables are run.
Deployment Requirements
| Requirement | Specification |
|---|---|
| Cabling | Cat5e or Cat6, max 100m; shielded cable recommended for exterior Texas installations |
| PoE Source | 802.3af switch port or PoE injector; 13W typical — efficient for high-density camera deployments |
| Mounting | Standard single-gang junction box, or direct surface mount with included hardware; adjustable ball joint post-mount |
| Mounting Height | 1.8-2.5m for entryway face capture; 2.5-4m for corridor overview; 3-5m for exterior perimeter |
| NVR | UNVR, UNVR Pro, Enterprise NVR, or UDM-Pro; at least 1 available camera slot |
| Storage Estimate | 70-90GB/day at 4K 30fps H.265+ per camera; 30-day retention requires approximately 2.1-2.7TB per camera |
| Network | Dedicated camera VLAN; 8-12Mbps per camera upstream to NVR |
UniFi Turret commercial deployment integrates with UniFi Access for entry control, UniFi Protect for AI-triggered recording, and UniFi Network for VLAN security — 2M Technology configures all three as a unified system.
UniFi Ecosystem Integration
The AI Turret integrates tightly with UniFi Access for entry monitoring — a person approaching a controlled door triggers a Protect recording clip and, if using facial recognition, can auto-populate the access event log with a matched identity. For Texas facilities using UniFi Dream Machine Pro as the network gateway, all AI Turret cameras adopt through the same UniFi OS interface used for network management.
Package detection events from AI Turret cameras in shipping and receiving areas can trigger automated notifications to facility staff via the Protect mobile app. 2M Technology configures these automations during commissioning, ensuring that package arrival notifications reach the appropriate team without requiring manual monitoring.
Comparing UniFi Turret commercial deployment against equivalent 4K cameras from competing vendors shows the license-free AI advantage of UniFi across the total deployment cost.
UniFi AI Turret vs Commercial 4K Camera Alternatives
| Feature | UniFi (2M Technology) | Hikvision DS-2CD2386G2-ISU | Hanwha QNV-8080R |
|---|---|---|---|
| Resolution | 8MP (4K) native | 8MP native | 5MP |
| AI Detection | On-camera, no license fee | Requires Deep Learning NVR or license | Requires Wisenet license |
| IP Rating | IP67 + IK08 | IP67 + IK10 | IP66 + IK10 |
| PoE | 802.3af (13W typical) | 802.3af (10.8W) | 802.3af (12.9W) |
| Mount Flexibility | Wall, ceiling, soffit — one unit | Dome only — ceiling primary | Dome only — ceiling primary |
| NVR Software | UniFi Protect — included | iVMS or third-party | Wisenet WAVE — licensed |
| License Cost | None — included | Per-channel AI license | Per-camera Wisenet license |
Common UniFi Turret commercial deployment mistakes are particularly costly at 4K because the high-resolution content consumes NVR storage faster than lower-resolution cameras — planning errors compound quickly.
Common UniFi Turret Commercial Deployment Mistakes
Incorrect Ball Joint Angle at Installation
The AI Turret’s ball joint must be set to the correct downward angle before the mounting screw is tightened — adjusting it after installation requires partial disassembly. 2M Technology sets the angle using a test image from the camera’s live view before securing the mount. A common mistake is tightening before verifying the image, then finding the angle needs correction after the cable is terminated.
Under-provisioning NVR Storage for 4K
4K H.265+ generates 70-90GB per camera per day. Texas commercial deployments that underestimate storage fill the NVR in 10-15 days instead of the planned 30-90 day retention period, then automatically reduce frame rate or resolution to cope. 2M Technology calculates exact storage requirements using the actual camera count and target retention before selecting NVR hardware.
Mounting Outdoors Without Overhang on Horizontal Surfaces
While IP67 rated, the AI Turret is not designed for direct upward rain exposure on horizontal surfaces (the junction box opening faces down when wall-mounted, but on some mounting orientations water can pool). For rooftop or fully exposed Texas weather deployments, 2M Technology uses the G5 Bullet or AI Pro with dedicated outdoor enclosures instead.
UniFi Turret commercial deployment questions from Texas facilities teams and security managers, answered with specific values from deployment exper
Environmental Deployment Logic: Perimeter Visibility Engineering
Commercial perimeter visibility is not a camera selection problem — it is an environmental engineering problem. Rain exposure, sun angle, IR reflection geometry, nighttime ambient light levels, and seasonal shadow patterns all affect whether a perimeter camera produces usable identification footage or unusable silhouette images. 2M Technology conducts perimeter site analysis before specifying any Texas outdoor camera deployment.
| Environmental Factor | Impact on Footage | Engineering Solution |
|---|---|---|
| Texas afternoon sun (west-facing) | Backlit silhouette 2pm-sunset, subject unidentifiable | WDR mode on; orient camera north or east; shade visor if south-facing required |
| Parking lot IR washout | IR reflects off vehicle hoods and ground at night | Mount at 3-4m, angle 25-30 degrees downward; Smart IR auto-adjusts intensity |
| Loading dock dust/debris | Lens contamination from forklift exhaust, pallet dust | Covered mount position; quarterly cleaning schedule; IP67 rating confirmed |
| Summer Texas heat (38C+) | Camera thermal throttling, IR degradation on cheap units | AI Turret rated -25 to +50C; avoid south-facing black surface mounting |
| Construction site vibration | Camera drift, loss of coverage zone alignment | Rigid conduit mounting; check alignment monthly during active construction |
| Overnight fog (Dallas basin) | IR scatter reduces visibility to 3-5m range | Accept fog limitation; pair with access control to log events fog prevents imaging |
PARKING LOT PERIMETER VISIBILITY TOPOLOGY
===========================================
[Building Wall]
_____|___________________|_____
| |
| [T1] Lot Row 1 [T2] | T = AI Turret at 3.5m
| | Angle: 30deg downward
| [T3] Lot Row 2 [T4] | Coverage: 15m radius
| | Spacing: 20m max
| [T5] Lot Row 3 [PTZ] | PTZ covers far zones
|_______________________________|
[Entry/Exit Lanes]
[T-E1] [T-E2] <-- Face-capture height 2.2m
COVERAGE RULE:
Entry/exit lanes = 2.2m mounting (face capture priority)
Lot rows = 3.5m mounting (coverage radius priority)
Perimeter fence line = G5 Bullet 50m IR preferred over Turret
Blind zone elimination = PTZ patrol covers gaps
Industry-Specific Perimeter Deployment Models
Perimeter visibility requirements differ fundamentally across commercial industries. A logistics facility needs dock-door-level identification. A construction site needs broad movement detection. A school needs pedestrian face capture at entry points. 2M Technology engineers each deployment to the specific operational requirement, not a generic camera specification.
Warehouse and Logistics
- Dock doors: 2.2m face-capture mount per door
- Yard perimeter: G5 Bullet 50m IR preferred
- Driver staging: AI Turret at dispatch window
- Trailer lot: PTZ for wide-area coverage
- Required: 60-day retention, dock event tags
Industrial and Manufacturing
- Entry gates: AI Turret at 2.2m for badge area
- Hazmat zones: explosion-proof housing check required
- Outdoor storage: 3.5m turret, 4mm lens, 20m spacing
- Fire exit monitoring: downward-angle turret covers path
- Required: 90-day retention for OSHA documentation
Parking Structures
- Entry lane: LPR camera preferred; turret as backup
- Pedestrian stairwells: 2.8mm at 2.2m, face-capture
- Level transitions: corner-mount turret covers ramp
- Elevator lobby: AI 360 fisheye replaces 3 turrets
- Required: 30-day minimum, motion alert zones
Construction Sites
- Temporary mount: steel post or trailer roof
- Power: PoE from temporary site power or solar PoE
- Perimeter fence: turret every 30m facing inward
- Equipment storage: AI detection alert after hours
- Required: Cellular failover, remote monitoring
AI Operational Analytics: Beyond Motion Detection
The AI Turret's on-camera AI processing elevates perimeter cameras from passive recording devices to active operational intelligence tools. UniFi Protect's AI analytics layer enables proactive security operations that traditional motion-detection cameras cannot support. 2M Technology configures AI analytics zones and alert workflows on every Texas commercial AI Turret deployment.
| AI Capability | Operational Use Case | Alert Configuration |
|---|---|---|
| Person detection | After-hours perimeter intrusion, unauthorized access zones | Schedule alert: 8pm-6am only; exclude daytime pedestrian false positives |
| Vehicle detection | Unauthorized parking, after-hours vehicle entry, lot monitoring | Vehicle in restricted zone after hours triggers immediate alert |
| Package detection | Delivery confirmation at unmanned dock doors, package removal | Package placed or removed triggers Protect notification with clip |
| Animal detection | Reduces false alarm rate from wildlife triggering person alerts | Animal events logged but not alerted; reduces security fatigue |
| Loitering detection | Person in zone beyond configurable dwell threshold triggers alert | Configurable: 30 seconds in restricted zone = alert |
Perimeter Camera Failure Scenarios and Operational Recovery
Perimeter cameras experience higher failure rates than indoor cameras due to environmental stress. Identifying failure modes and designing redundancy and recovery procedures is part of 2M Technology perimeter infrastructure engineering for Texas commercial sites.
Ball Joint Drift Under Thermal Cycling
Texas temperature swings (0C winter to 38C summer) cause thermal expansion and contraction that gradually loosens ball joint mounts. Camera coverage zone shifts 5-15 degrees over 6-18 months. Prevention: annual coverage zone verification against marked documentation photos. 2M Technology provides camera position documentation at project completion for this purpose.
IR LED Degradation Over 3-5 Years
IR LED arrays degrade gradually, reducing effective night-vision range from rated spec to 30-50% of original within 3-5 years of continuous outdoor use. Symptom: night footage appears progressively darker year over year. Prevention: schedule annual night-mode footage review; budget for camera replacement at 5-year intervals in outdoor perimeter deployments.
PoE Cable Degradation at Outdoor Conduit Entries
Water ingress at conduit entry points -- especially at wall penetrations without drip loops -- causes PoE cable degradation, intermittent connectivity, and eventually switch port failure. Prevention: all outdoor cable entries must have drip loops; use weatherproof conduit fittings; gel-filled outdoor-rated Cat6 for direct-bury or exposed runs.
For complete perimeter infrastructure architecture including switch selection and NVR sizing, see the UniFi Infrastructure Deployment Center. For camera-to-switch PoE budget planning, see the UniFi PoE Budget Planning Guide. For enterprise NVR storage sizing for perimeter deployments, see the NVR Storage Sizing Commercial Guide.
ience.
Frequently Asked Questions
What is the difference between the 2.8mm and 4mm lens for the AI Turret?
The 2.8mm lens provides a 110-degree diagonal field of view — ideal for wide entryways, corridors, and building approaches where broad coverage is needed. The 4mm lens provides a 90-degree diagonal FoV — narrower but with more pixel density at a given distance, better for monitoring a specific approach lane or narrow corridor where facial detail at range matters. 2M Technology recommends the 2.8mm for most Texas commercial entryway deployments.
Can the AI Turret replace a dome camera?
Yes, in most installations. The AI Turret provides the same function as a dome camera with the additional benefit of 4K resolution versus the G5 Dome’s 2K, and true IP67 weatherproofing versus the dome’s IP54. The only scenario where a dome may be preferred is in low-ceiling retail environments where the dome’s flush ceiling profile is less obtrusive than the turret’s extended ball joint.
How does AI detection work on the UniFi AI Turret?
AI detection runs on the camera processor without sending data to the cloud. The camera analyzes each frame in real-time and identifies persons, vehicles, animals, or package events within configured detection zones. Detection triggers a Protect notification and stamps the event in the timeline for rapid review. Sensitivity and zone boundaries are configured per-camera in UniFi Protect. No additional licensing is required.
What NVR capacity does a Texas AI Turret deployment require?
At 4K 30fps H.265+, each AI Turret generates approximately 70-90GB per day. A 20-camera deployment requires approximately 1.4-1.8TB per day — filling a UNVR (28TB) in 15-20 days. For 30-day retention with 20 cameras, a UNVR Pro (50TB) is the minimum recommended NVR, providing approximately 25-35 days of retention depending on scene activity.
Is the UniFi AI Turret suitable for Texas outdoor use year-round?
Yes. The IP67 rating and -25 to +50 degree C operating range make the AI Turret suitable for Texas outdoor conditions year-round, including summer heat. For installations in direct Texas summer sun exposure, mounting on a shaded north or east-facing surface reduces thermal load. 2M Technology has deployed AI Turret cameras at exterior building corners across North Texas without thermal issues in 4+ years of commercial deployments.
