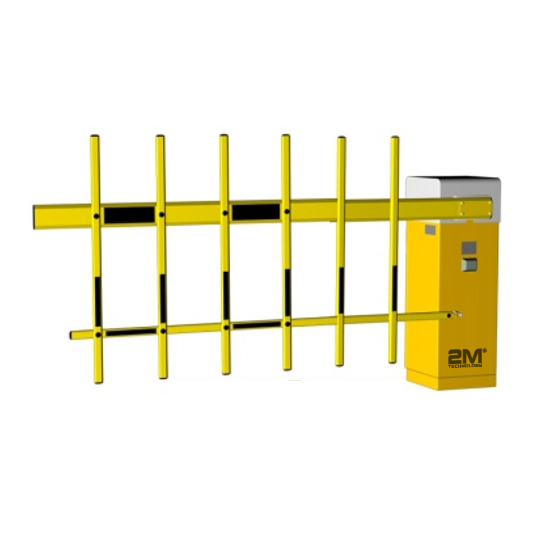

2MAGB-HFN Single Fence Intelligent Barrier Gate (DC Brushless Servo Torque Motor)
REQUEST QUOTE (for best price)
- Normal-speed of open / close 2.5~3 second
- Max. 3m/9.85’ft carbon fabric round arm with foam with fence
- Housing color optional: yellow (default)/orange/white/red/blue
- Arm direction can be changed to swing left or right without changing parts
The pricing is subject to change with customization. Allow 4-6 weeks for delivery.
Product Documents
Downloads
• Normal-speed of open / close 2.5~3 second
• Max. 3m/9.85’ft carbon fabric round arm with foam with fence
• Includes: arm x1, swing-off, remote x2, air switch x1, push button x1 to close barrier
• Boom bracket (Sold separately)
• Housing color optional: yellow (default)/orange/white/red/blue
• Arm direction can be changed to swing left or right without changing parts
• This model cannot be equipped with the LED light bar and swing-off
Want to see this product in action? Schedule a live demo now!
REQUEST QUOTE (for best price)
| Dimensions | 37.4 × 12.5 × 12.9 in |
|---|---|
| Ingress Protection | IP54 |
| Country of Origin | China |
| GATE FEATURE | |
| Power Supply | AC 85~264V, 50~60HZ, 50W |
| Motor | 50W DC-24V brushless servo torque motor 10 million MTBF, 100% duty cycle |
| Remote (optional) | Distance ﹥20m [65.5' ft] |
| Spring | 1~3 pcs. spring balance |
| Controller | 80C51 MCU, 20MHz, PWM variable frequency servo controller board |
| Loop Detector Input | pulse width 100﹥ ms |
| IR Detector Input | pulse width 100﹥ ms |
| Up & Down Input | pulse width 100﹥ ms |
| Traffic Light Output | AC220V output power (passive), current Max. 3A/AC220V |
| Loop Detector Syn. Output | Relay NO output,; Current Max. 0.5A/AC220V, or Max. 1A/DC12V |
| RS485 Interface | 9600bps, ASCII decimal encoded |
| Fence | 45x100(mm)/1.8" x 3.9" in. Aluminum alloy octagonal arm with rubber bar, Max. 6m /19.7' ft. Round arm with foam, Max. 3.5m (11.6' ft) |
| Housing | 2mm cold-roller sheet, IP54 |
| Housing Size (HxWxD) | 950×320×329 (mm) / 37.4" x 12.5" x 12.9" in. |
| Package Size | 1100×480×430 (mm) / 43.3" x 18.8" x 16.9" in. |
| Gross Weight | around 46kg / 101lb |
| Operating Temperature | -30°C to 55°C / -22°F to 131°F |
| Humidity | 10% - 95% RH |
